Control Panel

Title

Control panel build for custom machine.

Description

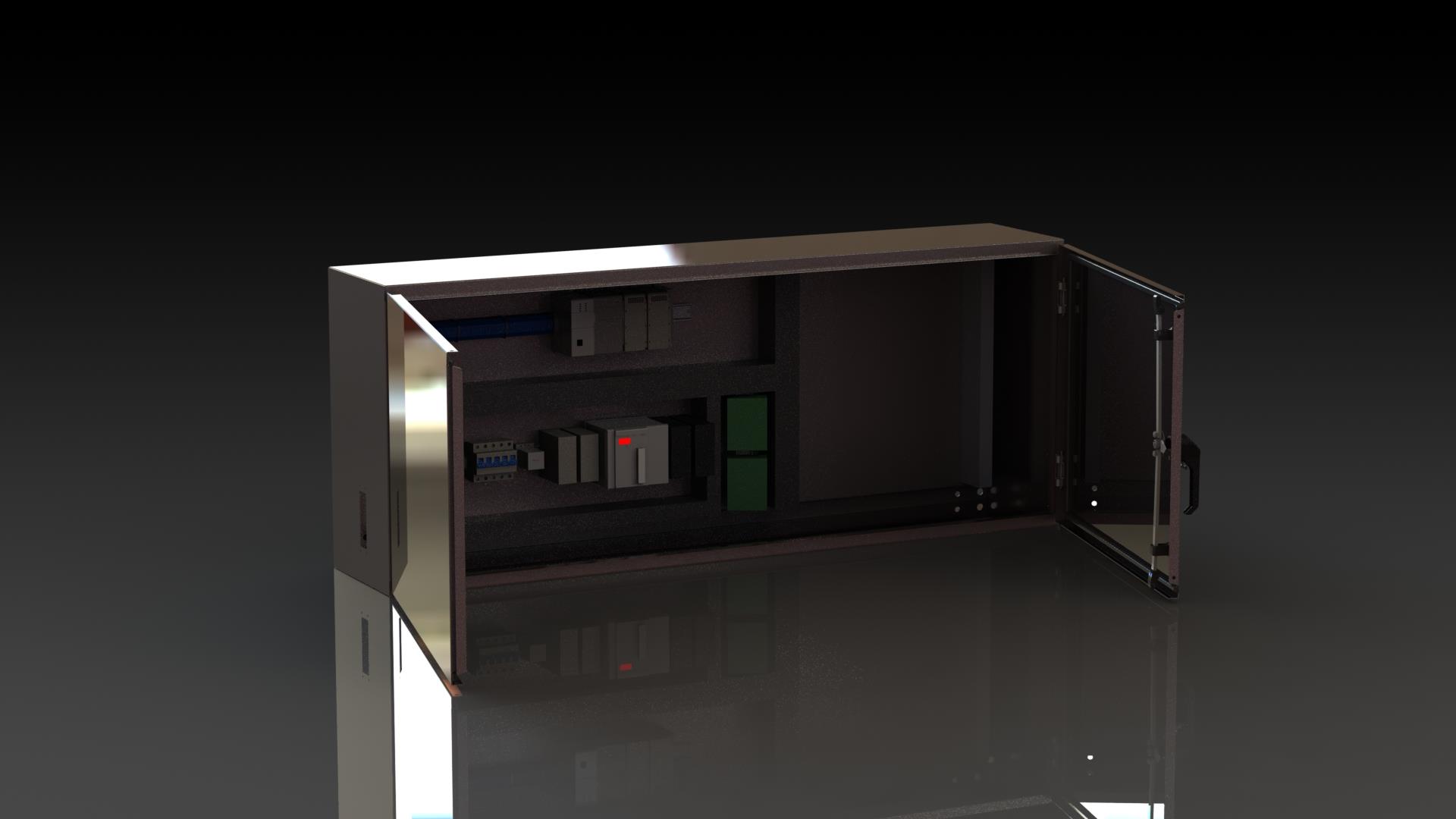

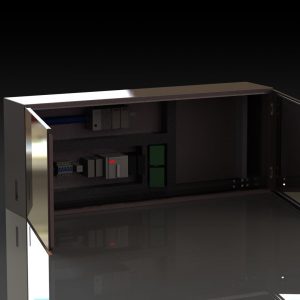

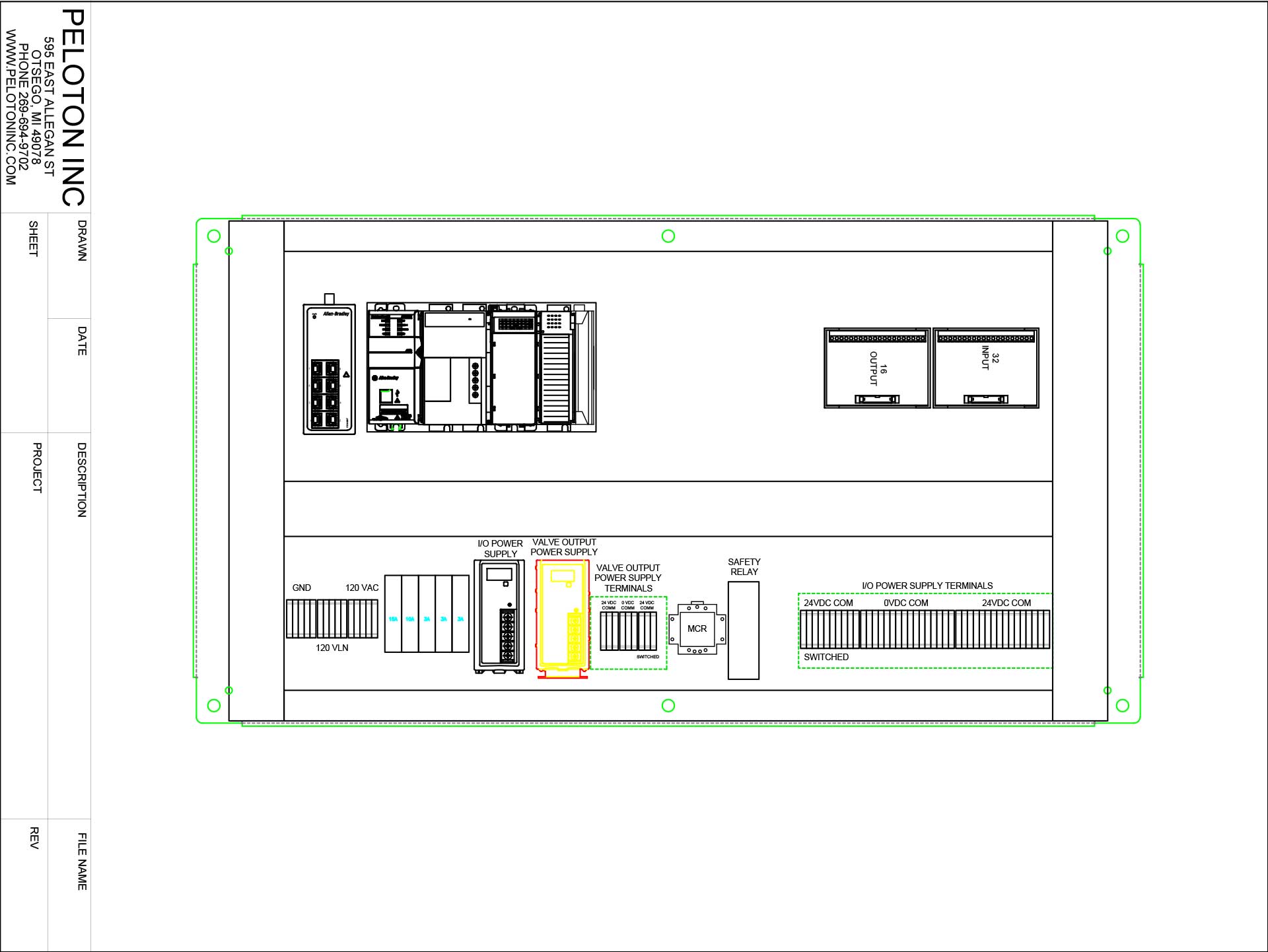

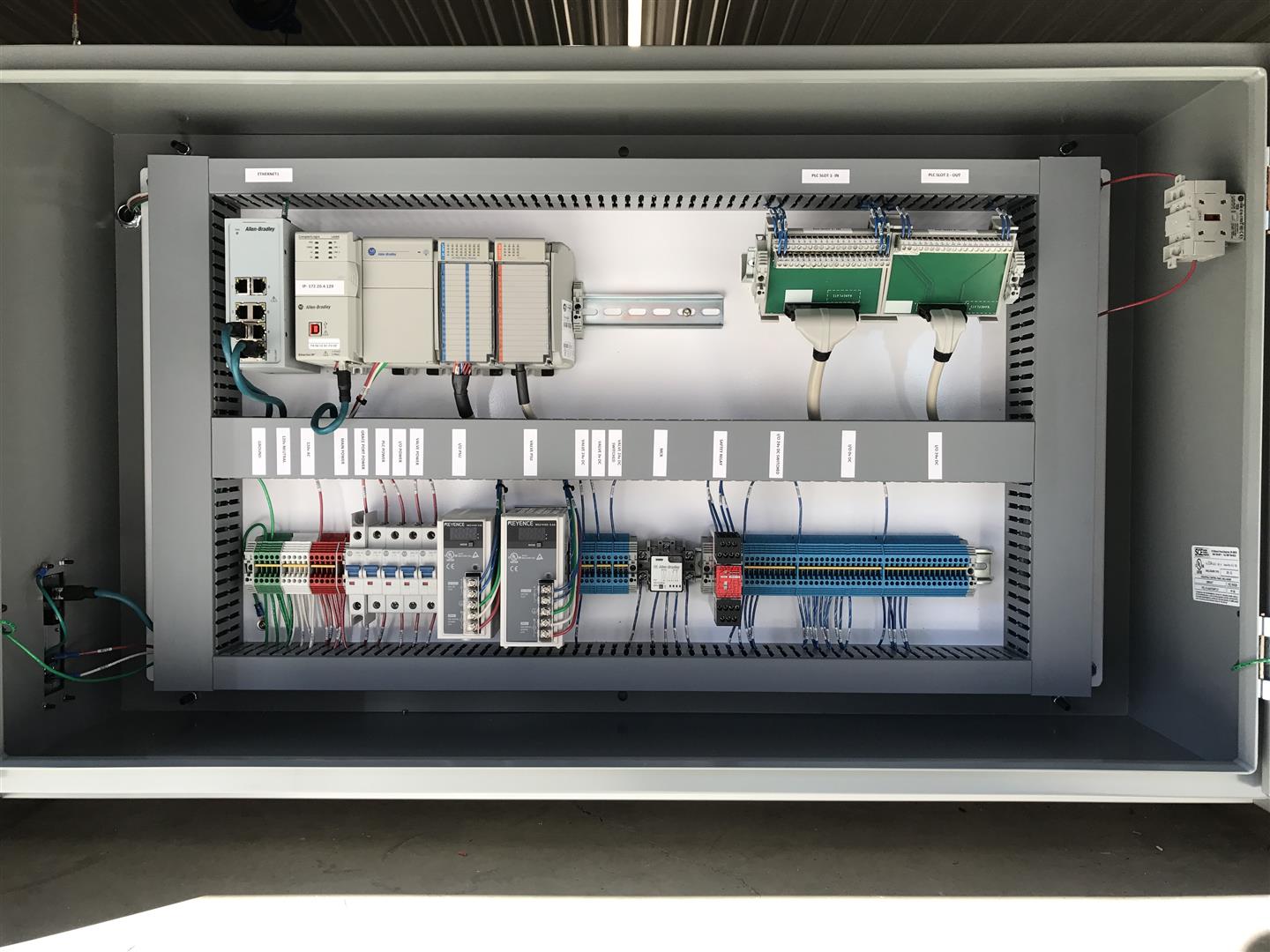

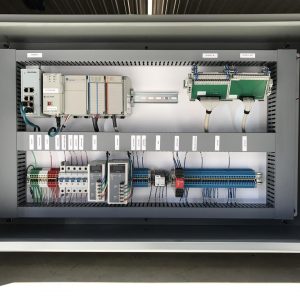

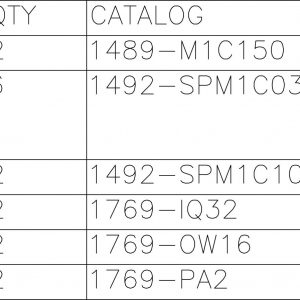

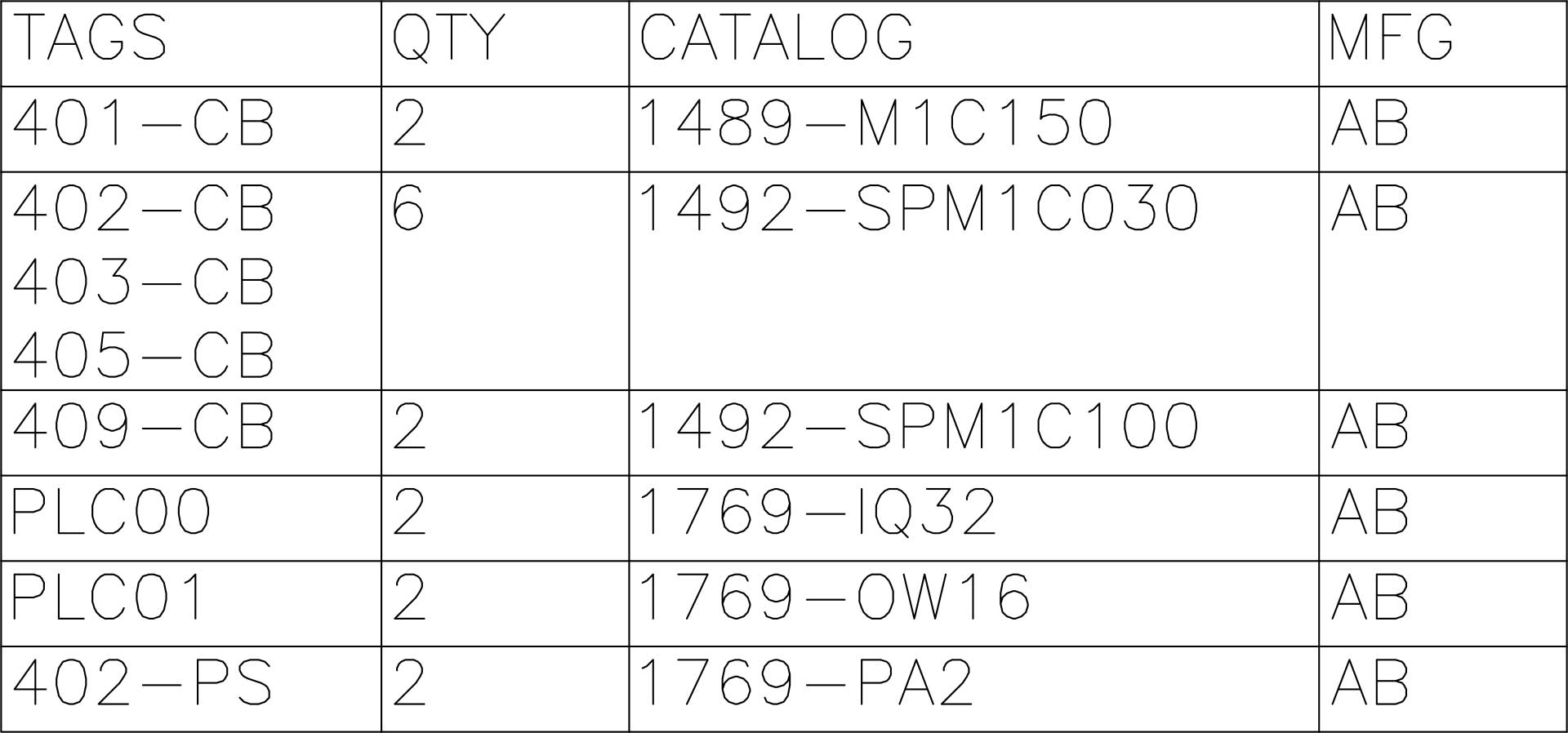

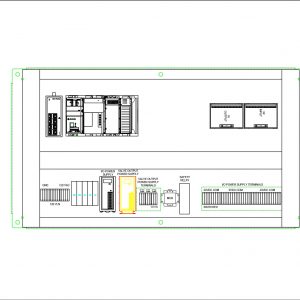

Pre-built panel wired from disconnect through breakers, power supplies, PLC, safety relay, and other hardware to terminal blocks in preparation of field wiring. The hardware was Allen Bradley CompactLogix PLC. Allen Bradley feedthrough terminal blocks were incorporated for labor cost reduction, reliability, and space saving. Electrical design and panel layout created in AutoCAD Electrical.
